Old - PCI DSS Scoping Model and Approach

Scoping categories

My approach to scoping, as other approaches do, is used to categorize systems. I define three (3) basic categories that are derived directly from the language of the PCI DSS standard: CDE, connected and out-of-scope. I'll describe these one by one, starting from the inner core that we are trying to protect: the area where we have CHD and/or SAD, the CDE.

First Category: CDE systems

All CDE systems are often called category 1 or type 1 devices. There are 3 different sub-categories in the CDE, but all applicable requirements will apply to all CDE sub-types equally.  Generally CDE systems are represented in red.

CDE/CHD

The Scope of PCI is presented on page 10 of version 3.2 of the standard. The first paragraph states:

The PCI DSS security requirements apply to all system components included in or connected to the cardholder data environment. The cardholder data environment (CDE) is comprised of people, processes and technologies that store, process, or transmit cardholder data or sensitive authentication data. "System components" include network devices, servers, computing devices, and applications.

Let's break this paragraph into its important aspects.

  • "apply to all system components" - adding that they "include network devices, servers, computing devices, and applications." - so basically, any type of computer system (hardware, operating system, software, applications) is subject to the requirements.
  • "(CDE) is comprised of people, processes and technologies" - so, while PCI DSS applies to computer systems, people and processes are also critical (and I recommend, as many others do, taking a business process approach first).
  • "that store, process, or transmit cardholder data or sensitive authentication data" - what will often refer to as SPT CHD/SAD to summarize. The systems that come into contact with CHD or SAD are the main ones we are trying to protect since they hold, or have access to, the information (the goods) that we are required to protect.

All these systems that SPT CHD/SAD are part, or form the basis, of your CDE (Cardholder Data Environment - the environment in scope for PCI). We'll refer to these as CDE/CHD systems.

CDE/Contaminated

In the network segmentation section, the standard states that "[n]etwork segmentation of, or isolating (segmenting), the cardholder data environment from the remainder of an entity's network is not a PCI DSS requirement" . Therefore, network segmentation is not required other than at the external perimeter of the network. The standard also adds: "[w]ithout adequate network segmentation (sometimes called a "flat network") the entire network is in scope of the PCI DSS assessment". If you do not use segmentation, everything is subject to PCI DSS requirements. Basically, your CDE expands to all systems that are in the same network as your in-scope CDE/CHD systems described above until some segmentation prevents it.

We shall designate in the same network zones as CDE/contaminated since there could easily be a transfer of information between systems that are not otherwise restricted (generally by a firewall or other device).

CDE/Segmenting

The third type of system in your CDE are the ones that provide the (generally network) segmentation and prevent "contamination". Typically, these are firewall devices, but they are not limited to those. These devices are called CDE/segmenting systems. The scope definition includes an instruction to that effect (and present in previous PCI DSS versions): "If network segmentation is in place and being used to reduce the scope of the PCI DSS assessment, the assessor must verify that the segmentation is adequate to reduce the scope of the assessment."

This third sub-category is furthermore warranted by the inclusion of a new requirement since PCI DSS 3.0 regarding the testing of segmentation during the required annual internal penetration tests (#11.3.4). Section 3.3 (Network Segmentation) of the PCI DSS 3.2 RoC template add documentation of this validation of adequate segmentation was performed. Note that the firewall rules that are unrelated to the CDE environment would be out-of-scope. This could happen if the firewall manages the connection point between the CDE and various other network segments. In that case, only the rules that pertain to access to the CDE are in-scope (for review), although it would be a good idea to treat all of them in the same way.



Image of firewall and 3 network zones (including the CDE)

Image of firewall and 3 network zones (including the CDE)



For example in the diagram above, the rules that limit zone A to zone B connections would be out-of-scope.

Segmentation in virtualization and cloud computing

The "PCI DSS Cloud Computing Guidelines" supplement covers segmentation in sections 4.4 through 4.4.3. It clearly states: "Segmentation on a cloud-computing infrastructure must provide an equivalent level of isolation as that achievable through physical network separation." Although cloud computing is mentioned, this is also the litmus test for any virtual environment. So an organization must "ensure that their environment is adequately isolated from the other client environments.  In terms of clouds or hosting providers, that assurance is made by the provider, whereas in internal environments this would be validated by the organization. Ultimately however, responsibility that validation has been performed (by someone) rests on the organization.


In section 4.4.1, the recommendation is made to use a "dedicated CDE hypervisor" to simplify the issue of segmentation (which is made more complex in cloud environments than in private hosting). Dedicating the hypervisor to the CDE systems (no mixed-mode) is also what many QSAs I've spoken to use as minimal guidelines.

For more detail see section 2.7 of Volume 2.



Second category: Connected systems

So when does a CDE system contaminate another? Some cases are easier to understand than others. For example, if two systems are in the same network segment and can communicate more or less freely (depending on opened services) then it is clear that contamination can occur (note that the possibility is sufficient to warrant inclusion). But what is required for a "connected" system not to become contaminated? Let's break it down to figure it out.

We know that communication between the systems must be restricted to only those services required for business operations (called "controlled access") according to requirement #1.2.1. Now, we can't always keep all systems we need inside a single zone, or we would be defeating the goals of scope reduction that we should aim for. So what are we to do in these instances?

The standard states that any device that is "connected to the cardholder data environment"  (CDE) is in scope since it is not completely isolated. The standard includes in scope any "[s]ystems that ["¦] may impact the security of (for example, name resolution or web redirection servers) the CDE". This is likely one of the most important lines written on scoping in the standard. This is further addressed on multiple occasions in the 2013 RSA presentation and the 2013 PCI community meetings presentation:

If it can impact the security of the CDE, it is in scope
Remember non-CHD systems may be in scope too

and

If an "out-of-scope" system could lead a CDE compromise, it should not have been considered out of scope

Thus, if we are unsure whether or not a system is in scope (as a "connected" system), we should look at whether a compromise of the system could lead to an attack on a CDE system without needing to first compromise another system. If is the case, then this system is in scope. The second subtype of connected systems will partly address this as well.

In this methodology, we use isolated to indicate that two systems cannot communicate at all with each other. If communication is limited (note: use of the "any" or "generic" rules are prohibited in PCI DSS), we call it controlled access. The RSA conference presentations confirms this:

  • To be out of scope: segmentation = isolation = no access

  • Controlled access ≠ isolation

  • Controlled access:

    • Is still access

    • Is a PCI DSS requirement

    • Does not isolate one system/network from another

    • Provides entry point into CDE

    • Is in scope for PCI DSS

      • Verify access controls are working

      • Verify the connection / point of entry is secure

Connected systems are often referred to as category 2 or type 2 devices. As in the CDE case, there are different types of "connected" devices that present a different level of risk. Connected systems are generally represented in orange (or yellow). Let's examine those three subtypes.

Connected/Security

There are systems such as user directories (Active Directory, LDAP), patch management systems, vulnerability management systems, several others (this is not an all inclusive list) which provide 'security services'. In our physical analogies, these would be security guards which can issue keys for the room, or it could be cleaning staff that provide services for that room. We can call these connected/security systems.

Connected/Communicating Systems

Any system that is 'connected to' the CDE (to CDE systems) is considered a 'connected' system. The exception is systems that are on the 'outside' of CDE/Segmenting systems, for example when a CDE/Segmenting also affects traffic not related to the CDE such as that described the CDE/segmenting section and presented in Figure 2.

Some connected systems (that have a connection to CDE/receiving systems) may eventually be ruled out-of-scope, but an evaluation must be formally documented by the organization to determine if PCI DSS applies. It could be of a system receiving information outside the CDE with no possibility of re-entry. For example, say that we have a connected system that receives periodic information transfers initiated from a CDE system and that we have insured that no CHD/SAD is transmitted. The protocol used for data transfer is sftp (part of the SSH suite of applications). The traffic is initiated from the CDE, a file is uploaded to the connected system, and then the connection is closed. Other than returning status messages as part of the protocol, there is no information flowing back to the CDE system. I would contend that the connected system as described here could be ruled out-of-scope since it cannot have an impact on the security of the CDE (although some DLP tool may be warranted). Documentation of the evaluation process should be created, maintained and kept, to be presented to your assessor.

Indirectly Connected

There are also systems that do not have any direct access to CDE systems (they are isolated from the CDE) that are still in scope. Instead, they would generally have access to other connected systems and, through these, could affect the security of the CDE. A classic example would be that of an administrator's workstation which can administer a security device (user directory, etc.), or systems upstream feeding information to connected systems (e.g. patching system, or an http connection as described above). In the case of a user directory, an administrator could potentially grant himself (or others) rights to systems in the CDE and breach the security of the CDE.

Indeed, the standard states that any system that "may impact the security of the CDE" is in scope. We can refer to these systems as connected/indirectly.

Third category: Out-of-scope systems

Finally, any system that is neither a CDE or a connected system is considered out-of-scope for PCI compliance. That system must be completely isolated (no connections whatsoever) from CDE systems, though it may interact with connected systems (and can even reside in the same network zone with connected systems). Do remember, however, if it can affect security of the CDE indirectly through another connected system, that it is a connected system and is therefore in scope.  Out-of-scope systems are generally represented in green.

Categories Summary

To summarize, there are three basic types of systems for PCI DSS purposes. The first group is the Cardholder Data Environment (CDE). The second group are connected systems, those that have some direct or indirect connection into the CDE. The third are out-of-scope systems completely isolated from the CDE systems. For these, always remember that "[s]ystems that may impact the security of (for example, name resolution or web redirection servers) the CDE" are always in scope or, to put it in other words: "If it can impact the security of the CDE, it is in scope".

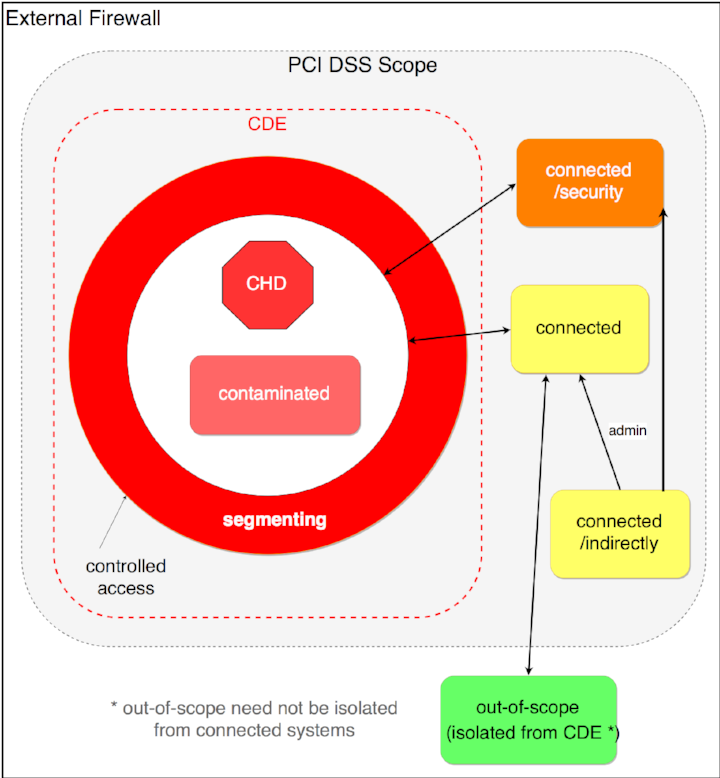

PCI Scope Type Diagram

PCI Scope Type Diagram

Type Sub-Type Segmentation CHD/SAD In-Scope

CDE

SPT

None

Yes

Yes

CDE

Contaminated

None

No

Yes

CDE

Segmenting

Provides Segmentation

No

Yes

Connected

Communicating

Controlled Access

No

Yes

Connected

Security

Controlled Access

No

Yes

Connected

indirectly

Indirect Access

No

Yes

Out-of-scope

Isolation

No

No

Table - Classification Categories Summary

Classification is key for us so we don't have to apply PCI DSS requirements to all systems.

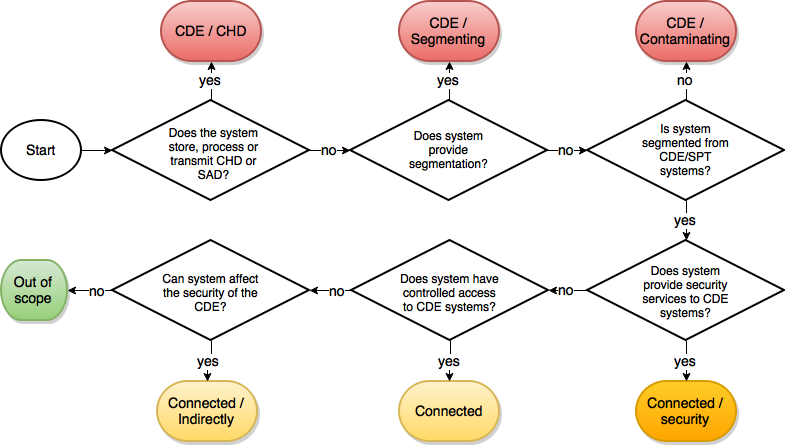

PCI Scoping Type Decision tree

PCI Scoping Type Decision tree



Scope Identification approach and Scope Documentation

Now that we've described the scope classification model, we need to look at how we must properly document the scope. The approach follows the model closely, with some elements of validation added. Once again, pages 10 and 11 of the standard provide us with the overall approach, while Appendix A3 adds more guidance of this definition in requirements A3.2.* (DE.2.* in DESV). As we have 2 types of in-scope systems (CDE and connected), we'll be splitting the process in two parts, one for each.

Part 1 - Identifying the CDE (a four step process)

Step 1.1 - The first step is to identify all systems that store, process or transmit CHD (CDE/CHD systems). These include servers, workstations, appliances, network equipment. The flow of CHD must be documented in diagrams (1.1.3) and detailed textual descriptions need to be produced (RoC #4.2). The flows and description must cover capture, authorization, settlement and chargebacks.

Step 1.2 - The second step is to identify where segmentation occurs (CDE/segmenting systems). CDE/segmenting systems prevent contamination and limit the scope of the CDE. The identified segmented CDE zones are generally represented in red in network diagrams

Note: any time you implement a new type of segmentation, you should perform segmentation testing as demanded by requirement #11.3.4 and confirm its effectiveness (and fix issues identified) before deploying the new technology into production (also called for in A3.2.4 or DESV DE.2.4).

Step 1.3 - The third step is to identify all other systems within the CDE which are contaminated (CDE/contaminated) systems. This should use the current maintained inventory (required by A3.2.4) but also include a system discovery using scanning tools (ping sweeps are typical here). Any difference with the inventory should be an indication of a failing inventory process and used to review and correct that process. The systems covered include servers, workstations, appliances, network equipment in the same segmented network zones or running under the same CDE/segmenting hypervisors (more on hypervisors in section 2.7.1 on virtualization).

Note: since CDE/contaminated systems bring potential scope reduction opportunities, this step can be used to review if it makes sense to move the system outside the CDE. More on this in volume 3 of the book series when talking aboutTCO (Total Cost of Ownership).

Step 1.4 - Finally, the fourth step is to validate that we do not have other PAN in other systems (A3.2.5 or DESV DE.2.5) or locations. This "data discovery" is usually performed using specialized tools (Data Loss Prevention, DLP) but simple 'grep' on Unix/Linux also works, and generally uses Regular Expressions, but manual discovery may be applicable when few systems are to be reviewed or on systems where such tools may not exist (for example, mainframes). For those who are resource constrained, inexpensive and free options do exist.

The "data discovery" should be performed on any system with the potential of storing PAN; at a minimum, this should cover all systems in the CDE and all connected systems (but really should include all servers, desktops and laptops). If any system is identified with PAN, then the following options are possible:

  • Consider the system as a CDE/CHD system and perform anew the previous identification steps
  • Migrate the system into the CDE and redo the previous steps
  • Securely delete the CHD, and determine why and how PAN was transferred to the system or location to prevent further expansion of scope

In all cases, this should be treated as a security incident per requirement 12.10.*.

Note 1: Version 3.2 of PCI DSS clarified the scope of what should be checked when it added the following line: “All types of systems and locations should be considered as part of the scoping process, including backup/recovery sites and fail-over systems.”

Note 2: This is also an appropriate time to review requirement 3.1 and testing procedure 3.1.b to ensure that CHD is destroyed after the approved retention period.

Part 2 - Identify connected systems (a five step process)

Once the CDE has been properly validated, comes the time to identify the remaining in-scope systems.

Step 2.1 - The first step here is to review all the in-scope firewall (or equivalent equipment implementing the ACLs) rules of CDE/segmenting systems to identify the list of all systems that may connect to the CDE. If the rules are for network ranges instead of individual systems, then using a system discovery tool for the entire range will be required (see step 3 of CDE identification). Note that if a rule implies a system that no longer exists, then that rule needs to be removed as required by 1.1.7. The fact that a decommissioning did not remove a system from a firewall ruleset should be treated as an incident and call for a review of the change control process. With the complete list, we will proceed in classifying these systems according to the model.

Step 2.2 - The second step involves identifying any system which provide security services, or services that may affect the security of the CDE, and which will be classified as connected/security systems. These include, at a minimum:

  • Identity and Directory Services (Active Directory, LDAP)
  • Domain Name Systems (DNS), Network Time Systems (NTP)
  • Patch management systems
  • Vulnerability management systems
  • Anti-virus management systems
  • File Integrity Management or Change Detection systems
  • Performance Monitoring Systems
  • Encryption Key Management Systems
  • Remote-access (VPN) Systems
  • Second-factor Authentication Systems
  • Log Management Systems and Monitoring Solutions (SIEM, syslog, etc.)
  • Intrusion Detection Systems/ Intrusion Prevention Systems (IDS/IPS)

Step 2.3 - The third step is to identify third-party systems that may be connected to the CDE through some sort of Internet or private link. These systems which are out of your control are also out-of-scope, but the third-party providers must be managed as stated by requirements 12.8.*. Remember that if the connections go through internal network equipment such as routers, than that equipment will still be in scope.

Step 2.4 - The fourth step is to identify connected systems that only receive information and which may (through analysis) be deemed out-of-scope if they pose 'no risk' to the CDE. These systems cannot generally initiate a connection to the CDE and do not have a re-entry to the initiating system (ping or the ICMP protocol may be an exception). This could be the case of an sftp connection. Note that some protocols (DNS, NTP) that might have been deemed as out-of-scope have been used in previous breaches to exfiltrate information. In these cases however, IDS/IPS, DLP or other controls on the CDE connection points or on the initiating system may be more appropriate to monitor for security. The analysis should be thoroughly documented and this documentation must be maintained for review by your assessor.

The remaining systems of the list identified in the first step are simply connected/communicating systems.

Step 2.5 - Finally, we must identify systems that are isolated from the CDE but could still affect its security, indirectly through some other connected system. These are obviously classified as connected/indirectly. Often, these are administrative consoles or administrator desktop/laptops.

Additional Guidance

The RoC reporting template gives us more detail of what we must document. Our documentation should include the information in the following subsections of sections 2, 3, 4 of the RoC reporting template. The ones marked as “assessor” are for use by the assessor, not the entity, although the assessor could be internal, either an ISA or someone producing a Self-Assessment Questionnaire (SAQ).

Section Detail

2

Summary Overview

Title

2.1

Description of the entity's payment card business

2.2

High-level network diagram(s)

PCI DSS 1.1.2

3

Description of Scope of Work and Approach Taken

Title

3.1

Assessor's validation of defined cardholder data environment and scope accuracy

Assessor

3.2

Cardholder Data Environment (CDE) overview

People, Process, Technology

3.3

Network segmentation

How segmentation is implemented

3.4

Network segment details

All CDE zones and zones containing

3.5

Connected entities for processing

PCI DSS 12.8.*

3.6

Other business entities that require compliance with the PCI DSS

3.7

Wireless summary

3.8

Wireless details

4

Details about Reviewed Environment

Title

4.1

Detailed network diagram(s)

PCI DSS 1.1.2

4.2

Description of cardholder data flows

PCI DSS 1.1.3

4.3

Cardholder data storage

A subset of CDE/CHD systems

4.4

Critical hardware in use in the cardholder data environment

CDE systems and connected/security

4.5

Critical software in use in the cardholder data environment

CDE systems and connected/security

4.6

Sampling

Assessor

4.7

Sample sets for reporting

Assessor

4.8

Service providers and other third parties with which the entity shares cardholder data

PCI DSS 12.8.*

4.9

Third-party payment applications/solutions

PA-DSS

4.1

Documentation reviewed

Assessor

4.11

Individuals interviewed

Assessor

4.12

Managed service providers

Included in-scope or PCI DSS 12.8.*

4.13

Disclosure summary for "In Place with Compensating Control" responses

Assessor

4.14

Disclosure summary for "Not Tested" responses

Assessor
